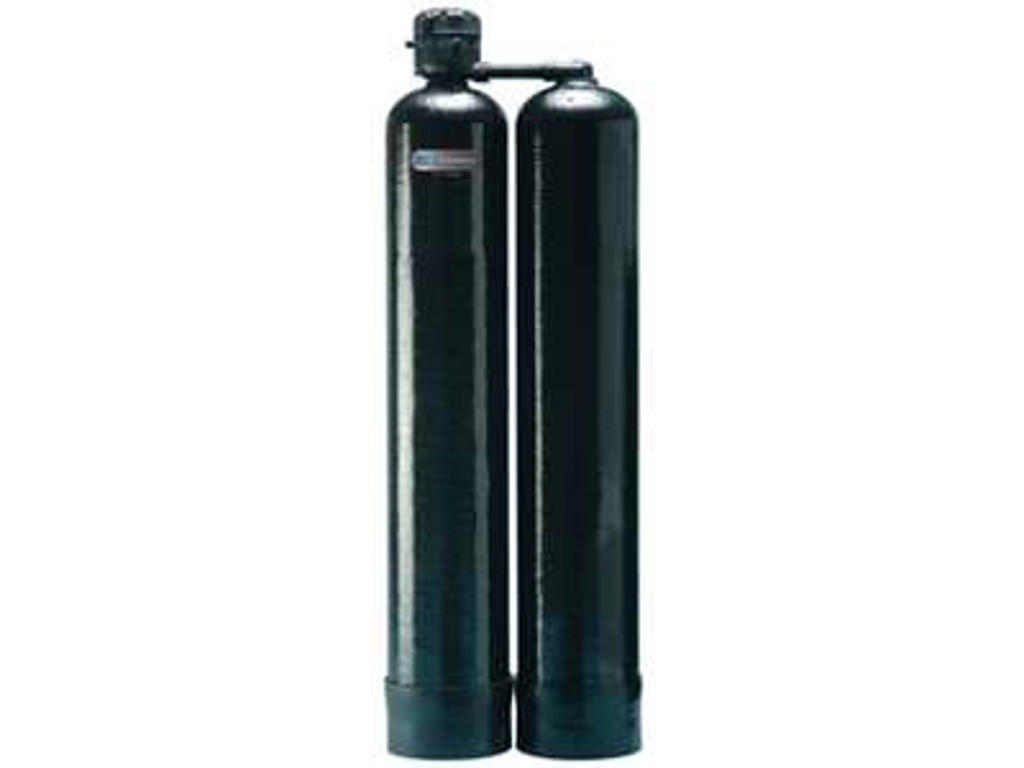

Automatic filtration system with high perfomance, that allows capacity to be expanded when needed.
• System with double tanks and without electricity.
• Can be used with several different media.
Specifications:
Dimensions (BxWxH) 533 x 254 x 1524 mm
Weight: 86 - 204 kg
Type Macrolite Carbon
Performance
Minimum Flow 1,1 l/min. 1,1 l/min.
Maximum Flow @ 1 Δ bar 38 l/min 19 l/min
Backwash
Time 20 min. 20 min.
Water consumption 492 liter 492 liter
System
Media Volume 2 x 20 liter 2 x 42,5 liter
In/Out 1” / 1 ½” 1” / 1 ½”
Maximum Temperature 50°C 50°C
Water pressure (Min/Max) 1,0 / 8,6 bar 1,0 / 8,6 bar
