Carcass trolley Aktiva 3000. The wagon is designed to transport dead animals out of the pigsties easy and without imposing any excessive strain on employees.
Specifications:
The 3-role is durable and ideal for concrete floors
Galvanised steel frame made in Denmark
Wheels of high quality made in Germany
Alko Winch of high quality made in Germany
CE Marking
User manual:
The wagon is placed behind the dead animal. Tie the rope above the knee joint of the pig on the leg that is closest to the floor and haul the carcass with the winch unto the wagon. The carcass will turn and lay partially on its bag in the basket. Two of the roles role over the floor while the animal is pulled unto the wagon on the top role. When the head of the animal are free from the floor stop hauling, it can be difficult to get the carcass of the wagon if it is pulled to high.
When unloading the carcass unwind the winch if necessary jiggle the wagon. Be aware that the wagon might move backwards therefore hold the wagon firmly during unloading.

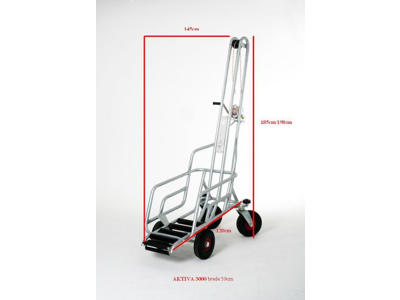

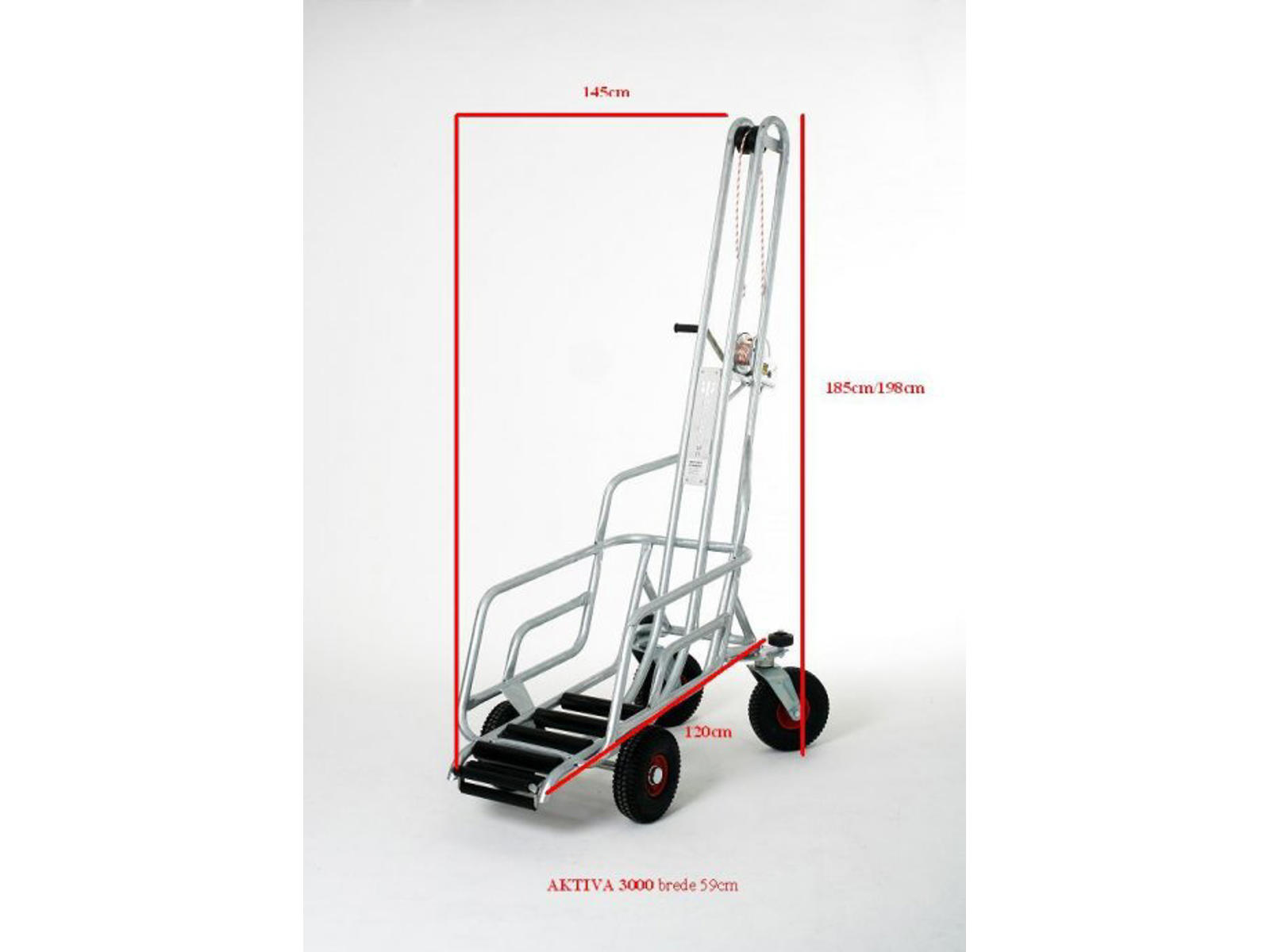

Technical data:
Length – horizontal: 110 cm
Length in total: 133 cm
Width: 60 cm
Height: 185 cm
Weight: 50 kg
Galvanized steel frame
Plastic type PA6
Stainless steel coated in PA6 plastic
Hand-winch:
- Internally lubricated bearings and cogwheels for a life-time problem free use
- Tempered cogwheels BHW-series
- Brake and cogwheels are fully enclosed for rain / dust protection
- Ratchet prevents slippage
- Automatic holding brake: holds loads in any given position
- 6 mm rope with a tensile strength of 2300 kg
- Air-filled 4 ply vulcanised rubber wheel
- Covered bearings
- Max. load 600 kg
